Rigid Box Making Machine

HORDA rigid box making machines automate cover feeding, gluing, board positioning and four-side folding for book-style rigid boxes, magnetic boxes and hardcover cases. Choose from high-speed, CCD-positioned, round-corner and large-format models, plus integrated case-making and inner-lining production lines.

High Precision High Stability Quick Changeover

Automatic Calendar Cover & Irregular Case Machine

Power Your Production

Working Size Range

90 x 180 mm to 750 x 1350 mm

Production Speed

10-35 pcs/min

Board Thickness

1.0-4.0 mm

QZFM-700A-1000A

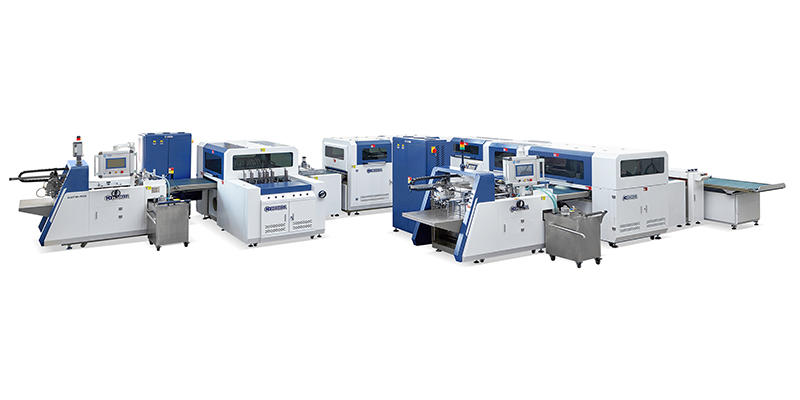

Integrated Rigid Box Case Making & Lining Production Line

Case Size: 100 × 200–600 × 1050 mm*

Production Speed: 15–25 pcs/min

Positioning Accuracy: ±0.2 mm

Integrated Process: Case Making + Inner Lining

Board Configuration: 1–6 pcs, 1.0–3.0 mm

QZFM-700B

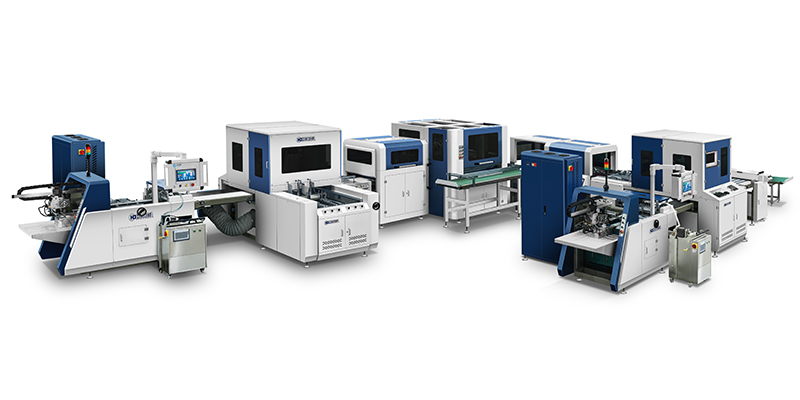

CCD Magnetic Box Cover Production Line

Case Size: 120 × 180–450 × 700 mm

Production Speed: 20–30 pcs/min

Positioning Accuracy: ±0.15 mm

Integrated Process: Case Making + Inner Lining

Board Configuration: 1–6 pcs, 1.0–3.0 mm

ZFM-700K

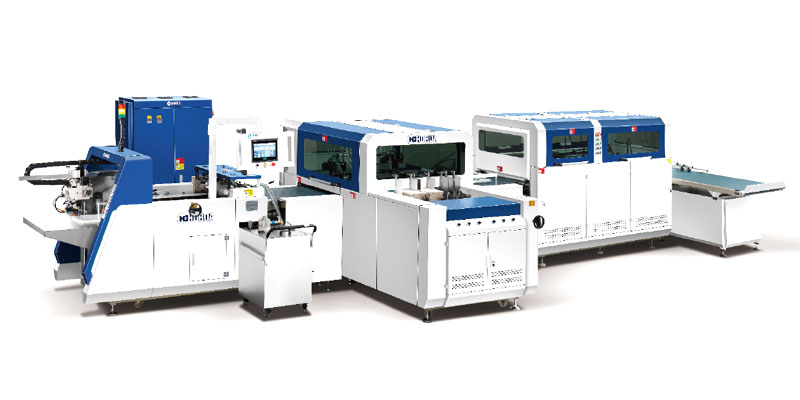

High-Speed Automatic Rigid Box Case Machine

Case Size: 90 × 180–450 × 720 mm

Production Speed: 20–35 pcs/min

Positioning Accuracy: ±0.2 mm

Board Configuration: 1–6 pcs, 1.0–3.0 mm

Min. Spine / Side Board: 8 / 25 mm

ZFM-700D

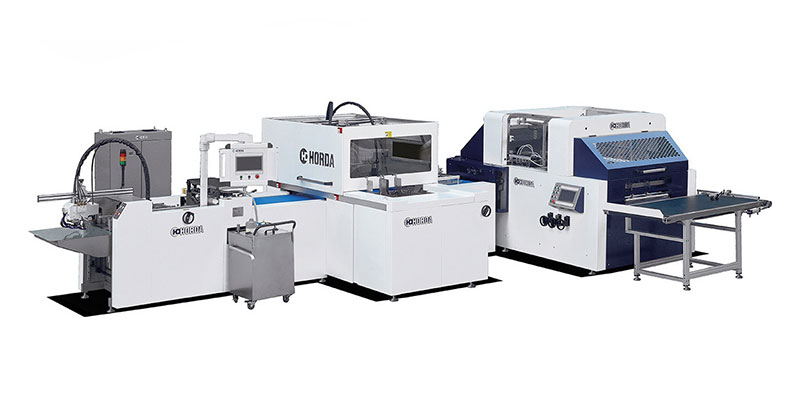

Automatic Round-Corner Hardcover Case Machine

Case Size: 100 × 180–400 × 700 mm

Production Speed: 10–35 pcs/min

Positioning Accuracy: ±0.2 mm

Corner Options: Round & Straight

Min. Spine / Side Board: 8 / 18 mm

ZFM-700H-1000H

Automatic Calendar Cover & Irregular Case Machine

Case Size: 90 × 180–600 × 1050 mm*

Production Speed: 20–35 pcs/min*

Positioning Accuracy: ±0.2 mm

Board Thickness: Up to 4.0 mm*

Min. Spine / Side Board: 8 / 18–25 mm*

ZFM-700A-1000A-1350A

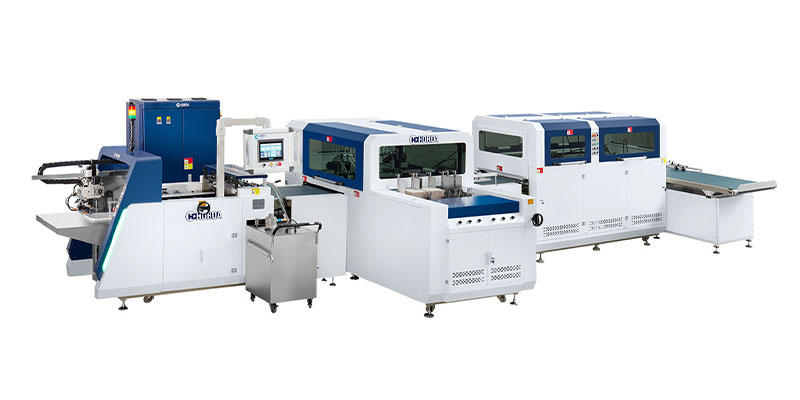

Large-Format Automatic Hardcover Box Machine

Case Size: 90 × 180–750 × 1350 mm*

Production Speed: 15–30 pcs/min*

Positioning Accuracy: ±0.2 / ±0.5 mm*

Board Configuration: 1–6 pcs, 1.0–3.0 mm

Min. Spine / Side Board: 8 / 25 mm

Built for Real Case-Making Requirements

Horda rigid box making machines combine stable material handling, precise board positioning, controlled edge folding and repeatable production. They also support special shapes, narrow edges, different corner styles and energy-efficient glue management for more demanding case-making projects.

Stable Material & Glue Handling

Stable paper feeding and controlled glue application help maintain smooth material flow during continuous production. Insulated glue tanks with automatic circulation improve temperature control, reduce paper sticking and simplify routine cleaning.

Accurate Board Positioning

Servo control and photoelectric detection keep the front board, back board and spine board accurately aligned. Consistent board spacing supports smooth case opening, clean folding and reliable downstream lining or assembly.

Clean Edges & Repeatable Output

Feeding, gluing, positioning and four-side folding work as one coordinated process. This helps maintain accurate paper alignment, tight wrapped edges, neat corners and flat case surfaces throughout the production batch.

Stable Output & Quick Changeover

Motion control, servo systems and repeatable machine settings support stable continuous production. Regular product adjustments can be completed efficiently, reducing downtime when changing between different case sizes.

Extended Capabilities Across the Range

Mold-Free Irregular Shapes

Supports triangular, S-shaped, curved and other irregular cases without dedicated molds.

18 mm Narrow Edge Processing

Supports dual-head special edge wrapping and narrow edges down to 18 mm.

Round & Straight Corners

Supports both round-corner and straight-corner hardcover case production.

Energy-Efficient Glue Control

Insulated, automatically circulating glue tanks provide stable performance and up to 60% lower energy use.
