The ZFM-700D automatic round-corner hardcover case machine produces round- and straight-corner covers for books, rigid boxes and premium packaging.

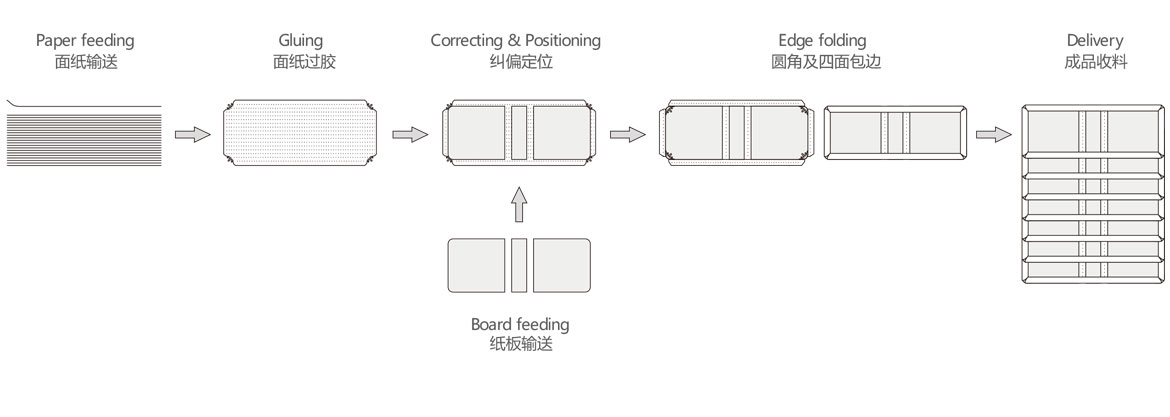

Its upper-suction feeding and multi-station folding systems keep materials moving smoothly through the production process. The dedicated corner-wrapping mechanism forms compact edges with a clean finish and can be adjusted for either rounded or straight-corner production.
Motion control synchronizes the servo-driven stations for stable paper feeding, board positioning and folding. A compact footprint and touchscreen fault display also make the machine easier to install, operate and troubleshoot in daily production.
Control & Electrical
TRIO Motion Controller (UK)
Leuze Photoelectric Sensors (Germany)
Schneider Electrical System (France)
Carlo Gavazzi Phase-Failure Protection Relay (Switzerland)
Motion & Transmission
PMI Linear Guideways (Taiwan)
igus Bearings (Germany)
TBI Precision Ball Screws & Ball Splines (Taiwan)
Gates Synchronous Belts (USA)
Pneumatic System
CKD Solenoid Valves (Japan)
AirTAC Pneumatic Components (Taiwan)
| Model | ZFM-700D | |
| Maximum size | mm | 400×700 |
| Minimum size | mm | 100×180 |
| Paper weight | g | 100-200 |
| Board thickness | mm | 1.0-3.0 |
| Boards amount | Pieces | 1-6 |
| Minimum spine width | mm | 8 |
| Minimum side-board width | mm | 18 |
| Speed | Pieces/min | 10-35 |
| Positioning accuracy | mm | ±0.2 |
| Power supply | kw | 22.5 |
| Weight | kg | 3800 |
| Dimension | mm | 7300×2700×1600 |
